基本半导体（BASiC）先后推出全电流电压等级碳化硅肖特基二极管、首款国产通过工业级可靠性测试的1200V碳化硅MOSFET、
车规级全碳化硅功率模块等系列产品，性能达到国际先进水平，应用于新能源、电动汽车、智能电网、轨道交通、工业控制等领域。
碳化硅肖特基二极管 | |||||||

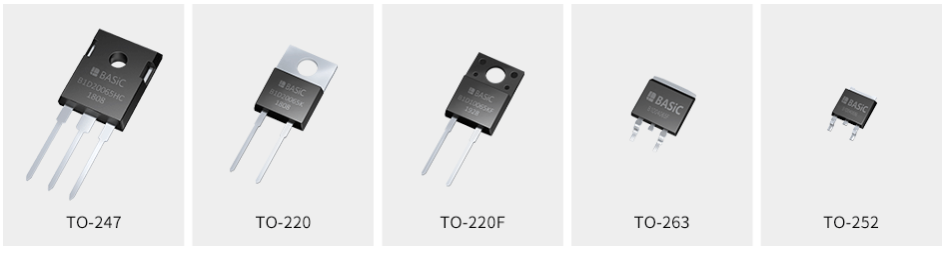

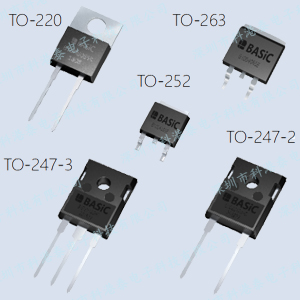

Product | Current | TO-220 | TO-247-3 | TO-247-2 | TO-252-2 | TO-263-2 | |
650V | JBS | 2A | B1D02065K | B1D02065E | B1D02065F | ||
4A | B1D04065K | B1D04065E | B1D04065F | ||||
6A | B1D06065K | B1D06065E | B1D06065F | ||||
8A | B1D08065K | B1D08065E | B1D08065F | ||||
10A | B1D10065K | B1D10065E | B1D10065F | ||||
15A | B1D15065K | ||||||
20A | B1D20065K | B1D20065HC | |||||
20A | B1D20065HCA* | ||||||
30A | B1D30065HC | ||||||
40A | B1D40065HC | ||||||
1200V | JBS | 2A | B1D02120K | B1D02120E | |||
5A | B1D05120K | B1D05120E | |||||
10A | B1D10120K | B1D10120HC | B1D10120H | B1D10120E | |||
15A | B1D15120K | ||||||
20A | B1D20120K | B1D20120HC | B1D20120H | ||||
30A | B1D30120HC | ||||||
40A | B1D40120HC | ||||||
40A | B1D40120HCA* | ||||||
1700V | JBS | 3A | B1D03170H | ||||
 | |||||||

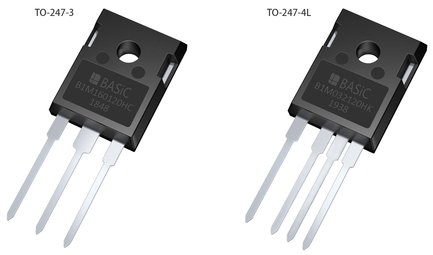

碳化硅MOSFET | |||||
Product | Rds(on) | TO-263-7 | TO-247-3 | TO-247-4 | |
1200V | MOSFET | 160mΩ | B1M160120HC | ||
80mΩ | B1M080120HC | ||||
40mΩ | B1M040120HC | ||||
32mΩ | B1M032120HC | ||||
18mΩ | B1M018120HC | ||||
 | |||||

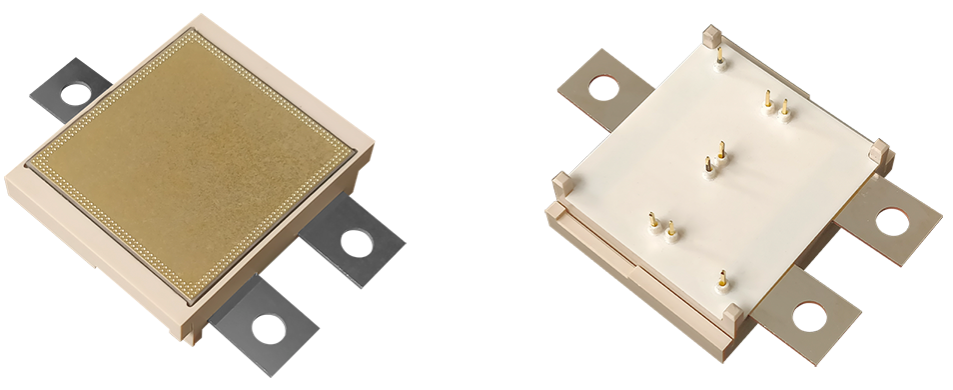

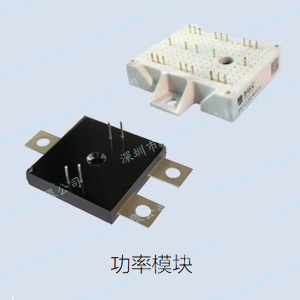

车规级全碳化硅功率模块 | ||||
电压 (V) | 电流 (A) | 电池电压 (V) | 电驱最大功率(kW) | 并联数量 |
1200V | 200A | 600V | 60 | 1 |
120 | 2 | |||
180 | 3 | |||
800V | 80 | 1 | ||
160 | 2 | |||
240 | 3 | |||
1200V | 300A | 600V | 90 | 1 |
180 | 2 | |||
270 | 3 | |||
800V | 120 | 1 | ||
240 | 2 | |||
360 | 3 | |||
 | ||||
